Woods LU215

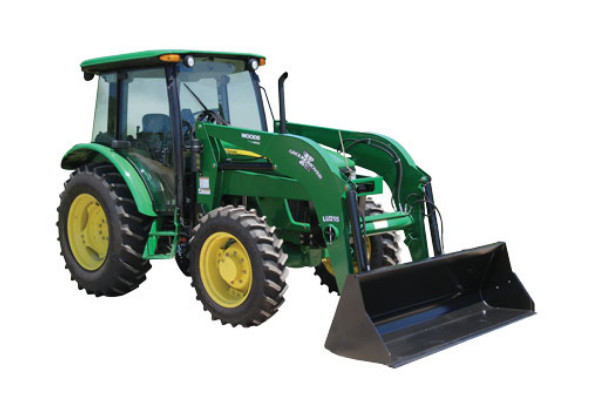

Woods LU215 for sale at Red Power Team, Iowa

Double tap to zoom

Woods LU215 for sale at Red Power Team, Iowa



Features

  • Tractor HP range: 50-100 hp 2WD and FWA Utility Tractors
  • 138-inch maximum lift height
  • Offers greater clearance for FWA tractor tires while still adapting to 30-inch row crop applications
  • Heavy-duty 1.25-inch greasable pins provide strength and wear resistance to pivot areas
  • Modern replacement option for older DuAl® 200 and 215 series loaders
  • Commercial grade bucket with round-back bucket for even material flow
  • Four-bar bucket linkage maximizes bucket roll back and dump angles
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Can be painted to match most tractor brands

Specs

Recommended tractor horsepower 50-100 hp
Bucket widths 84"
Bucket rated capacity c.c. ft. (66" / 72") 20.8
Working width 5"
Maximum lift height 138"
Clearance under bucket 111"
Reach at maximum height 28"
Bucket roll back angle 22°
Bucket dump angle 45°
Tested hydraulic PSI 2,750 psi
Lift capacity at bucket pin 3,600 lbs
Breakout at bucket pin 5,100 lbs
Lift capacity at 19.7" ahead of bucket pins 2,400 lbs
Breakout at 19.7" ahead of bucket pins 3,600 lbs
Pivot pins diameter 1.25"
Lift cylinder diameter 2.76"
Bucket cylinder diameter 2.76"
