Woods LU132

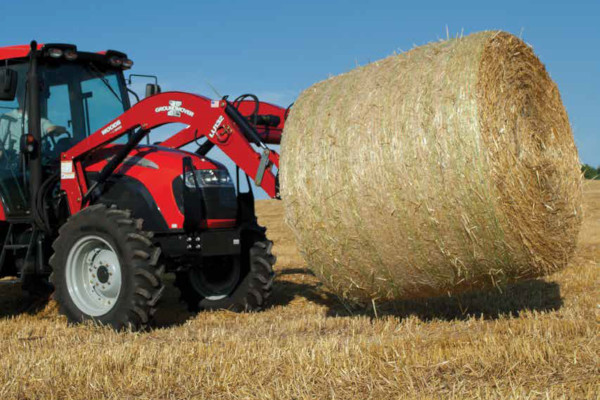

Woods LU132 for sale at Red Power Team, Iowa

Double tap to zoom

Woods LU132 for sale at Red Power Team, Iowa



Features

  • Tractor HP range: 45-90 hp
  • 132-inch maximum lift height
  • Commercial grade bucket with round-back bucket for even material flow
  • Four-bar bucket linkage maximizes bucket roll back and dump angles
  • Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
  • Can be painted to match most tractor brands

Specs

Recommended tractor horsepower 45-90 hp
Bucket widths 72", 84"
Bucket rated capacity c.c. ft. (66" / 72") 17.1 / 20
Working width 5"
Maximum lift height 132"
Clearance under bucket 107"
Reach at maximum height 31"
Bucket roll back angle 35°
Bucket dump angle 50°
Tested hydraulic PSI 2,750 psi
Lift capacity at bucket pin 3,500 lbs
Breakout at bucket pin 5,350 lbs
Lift capacity at 19.7" ahead of bucket pins 2,400 lbs
Breakout at 19.7" ahead of bucket pins 3,800 lbs
Pivot pins diameter 1.25"
Lift cylinder diameter 2.76
Buscket cylinder diameter 2.76"
