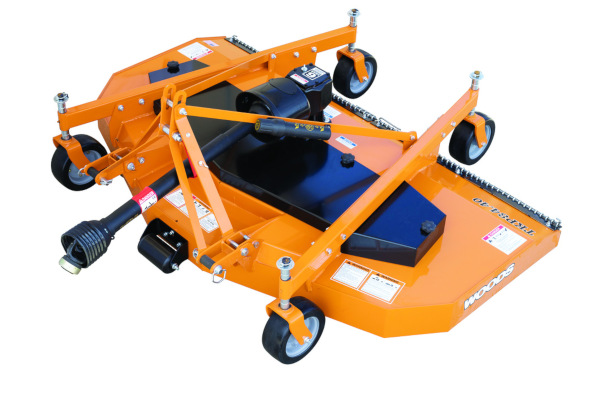

Woods TKP84.40

Double tap to zoom

Heavy duty construction provides maximum durability for commercial and residential use
Completely quick-hitch ready from the factory – makes attachment to your tractor easy and no additional hardware to purchase
High-lift blades for best in class lifting and cutting of green material for evenness of cut
Parallel frame deck sides spread material from edge to edge for even material distribution
High blade tip speeds enhance productivity with improved mowing at higher speeds for less time on the job
Limited CAT 1 (TKP60.40 only) and CAT 1 – Compatible with subcompact and compact tractors up to 50 PTO hp
Driveline holder – Keep the drive out of the dirt, even when attaching
Easy shield removal – no tools needed to access belt sheaves, belt, spring-loaded idler

Tractor PTO HP	25-50
Product Weight (lbs.)	790
Shipping Weight (lbs.)	898
Hitch Category	CAT 1
Quick-hitch Ready	Yes
Floating Lower Hitch	Yes
Cutting Width (in)	84
Overall Width (in)	85
Cutting Height (in)	1.5-5
Gearbox HP	60
Driveline Category	CAT 3
Spindle Housing	Ductile iron
Spindle Bearings	Triple ball bearings
Greasable Spindle	Yes
Spindle Sheave Type	Cast-iron
Belt	B-section Aramid
Belt Adjustment	Spring-loaded with bearing pivot
Blade Size (in)	.313 x 2.5 x 29
Blade Overlap (in)	1.5
Blade Tip Speed (fpm)	18,100
Deck Thickness (ga)	7
Deck Depth (in)	5.38
Lower Hitch Type	Clevis
Caster Pivot Bushings	Yes
Belt Cover	Yes
Rear Chain Shielding Option	Yes
Blade Options	Hi-lift, low-lift, mulch
Gearbox Warranty	6 year
Mower Warranty	1 year
Spindle Warranty	3 year

Rear Mount TKP84.40
