Westfield MK80-71

Product Lines / All Other Lines / Westfield / Portable Augers / MK 80 Auger / MK80-71

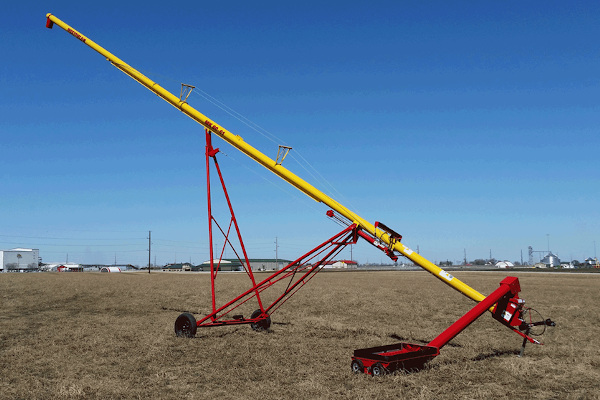

Westfield MK80-71 for sale at Red Power Team, Iowa

Double tap to zoom

Westfield MK80-71 for sale at Red Power Team, Iowa



Features

Wear Edge Technology™
Westfied developed Wear Edge Technology™ to extend the life of the flighting. This provides an extra layer of steel welded to the edge on critical wear points. As a result, flighting lasts longer and needs to be replaced less often – saving time and money.

  • 8" diameter
  • 51' - 71' lengths
  • up to 3,900 bph



Powder Coat Paint
Westfield uses a durable powder coat paint for a strong, long lasting finish that looks good and protects against rust.

A-Frame Undercarriage
The MK80 Series features an A-frame undercarriage to withstand bowing and maintain rigid alignment during heavy loads.

Optional Features

  • Hydraulic power swing
  • Flex spouts
  • Right angle drive
  • Reverser kit

Specs

MODEL MK80-71
TUBING GAUGE 14 GA Welded Steel
MAIN FLIGHTING 10 GA Stretched & Welded
WEAR EDGE TM
(REINFORCED FLIGHT)"		 10 GA Ribbon Welded Wear EdgeTM on Critical Grain Transfer Points including the Intake Hopper Flighting, Initial Incline Flighting & Boot Flighting
FLIGHTING SHAFT 1.66" x 11 GA Tubing
PSI REQUIRED TO RAISE AUGER 1200 PSI
PTO LINE DRIVE 14 Series with 5/16" Shear Bolt
HP REQUIRED 50
TUBE TRUSSING 5/16" Aircraft Type Galvanized Cable
TRACK High Yield 11 GA Roll Formed
TRACK SHOE Double 2 ¾" Rollers
UNDERCARRIAGE 3" x 11 GA Frame
AXLE 2 ½" x 2 ½" x 1/8" Wall Square Tubing
HUBS & WHEELS 4 Bolt Agricultural Type Hubs - 15" Wheels
WHEEL TREAD 118"
HYDRAULIC LIFT One 4" Cylinder with 5/16" Aicraft Cable
TRANSPORT HEIGHT 14' 6"
TIRES REQUIRED 15" Agricultural Tires
*STANDARD HOPPER HEIGHT 10 ½"
APPROXIMATE HYDRAULIC FLUID
REQUIRED TO RAISE AUGER		 9.0 Litres
*Hopper height is to top of metal portion (add 4"" for the rubber extension).

Note: Capacities may vary according to the commodity and moisture content. Specifications and design are subject to change without notice."

DISCLAIMER: This auger was proudly designed to handle dry, free-flowing grains up to a maximum of 65 lb/bu (52 lb/cf). Any usage of this auger outside of this is not authorized by AGI.
