Salford Group Valmar AB350CF2M Mounted Air Boom Applicator for Case IH® Titan

• Dual , independently driven 16" 304 stainless steel mesh chain conveyors
• (1 LH & 1 RH)
• Manual adjustable chain tension
• 304 stainless steel bins screens
• Subframe and 4-point mounting for CaseIH Titan Chassis
• 304 stainless steel booms with hydraulic folding breakaway tips
• *NEW* 72' spread width
• Hydraulic boom suspension with manual boom tip height adjustment from cab
• 22" Hydraulic Fan
• PTO, PTO extension and hydraulic pumps (driven from Allison transmission)
• Hydraulic lines to chassis reservoir
• Transport lighting and reflectors, internal/external work lighting
• *NEW for 2019/2020* Rear mounted grease bank system
• Hopper implement harness, ECU-to-cab harness, bin-level, fan speed, meter speed & flow control
• (Cab interface components and Raven RCM ECU to be supplied by customer/dealer - see customer/ dealer installation on page 3 for details)
• Meter calibration kit (2 pails, hand-held weigh scale and bulk density scale)

REVOLUTIONARY NEW Adjustable HOPPER DESIGN

This new 6700 AB350CF is capable of applying one, two, or three products at once with various hopper configurations. Empty hoppers can be adjusted in seconds. No tools or bin inserts required.

Simple, Accurate Application

The 6700 for Case IH® features Valmar’s Venturi metering design with proven reliability and simple maintenance.

Reduce application overlap and save on input costs with variable rate application and left/right section control.

Engineered specifically for the Case IH® Titan 20, 30 and 40 series floater chassis, this 6700 model will integrate seamlessly with your chassis.

Metering

The bins 1 & 2 bin of the hopper has dual 16-inch stainless steel chain mesh conveyors that allow for two section (LH and RH) ON/OFF controls. This is driven by the chassis’ auxiliary tandem hydraulic pumps supplied with 6700 and controlled by the ISOBUS ECU.

Integrated Micro-NUTRIENT COMPARTMENT

The micro-nutrient metering is also two section but metered by LH and RH roller meters. A 28-groove staggered flute or 12-groove straight flute is available to choose from. The micro-nutrient hopper is also hydraulic variable rate controlled. The two-section micro nutrient hopper, metered with either 28-groove staggered flute or 12-groove straight flute, is also variable rate controlled.

Air Booms

The patent pending air booms on the 6700 are rear mounted, to minimize accumulation of fertilizer on the chassis, and are made from 304 stainless steel with a spread width of 70 feet. The booms are two-section, hydraulically folding, with a spring-loaded breakaway on the tip. The booms feature hydraulic suspension, with accumulators for stability at higher field speeds.

The tip of each boom can be independently raised and lowered during operation with manual hydraulic controls from inside the cab. The venturi air manifold system is supplied by a 22 inch hydraulically driven fan.

Control System

Pre-installed harnessing for Raven RCM ECU which is supplied by dealer. The ISOBUS controller offers full swath variable rate and LH/RH section control capability. For Case IH® Titan Floater Chassis, the 6700 can also be ordered as “rate control ready”, which includes all sensors, flow control valves, and the main implement harness. PWM valves are used to control the chains and roller motors, giving the system quick response times for changing application rates.

Boom functions are controlled using a switch box which is mounted neatly into the cab console.

Application and Usage

The 6700 is ideal for broadcast application of granular fertilizer. The 6700’s micro hopper is also capable of metering granular chemicals, cover crops and micro-nutrients.

Hopper Installation

The hopper comes with tandem pumps, bolt on PTO ad extension for Allison transmission, work lights with harness to cab, light brackets and adapters for Case IH® chassis road lights and Case IH® fender kit adapter bracket. For ease of installation, the hopper comes with 4 lift points for installation. Additional standard features for easy installation include: lighting and ISOBUS quick connections, along with mounting hardware.

HOPPER
- 409 Stainless Steel (Painted to match chassis)
- Up to 3 Compartments (2 x Main Products + 1 Micronutrient/Cover Crop/Granular Chemical) Adjustable flip gate system between bins.
- Configuration Apply one, two, or three products at once with various hopper configurations.
- 304 Stainless steel bin screens
- 350 cu / ft total struck capacity (see chart).

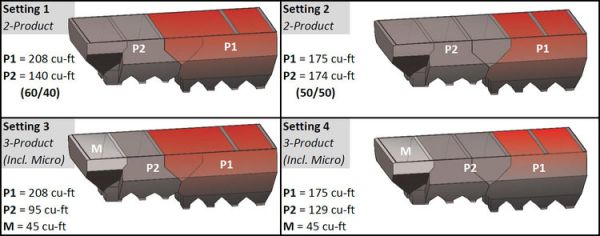

HOPPER CONFIGURATIONS
- Hopper Combination 1: Capacity 1) 208 cu-ft 2) 95 cu-ft 3) 45 cu-ft
- Hopper Combination 2: Capacity 1) 208 cu-ft 2) 140 cu-ft
- Hopper Combination 3: Capacity 1) 175 cu-ft 2) 129 cu-ft 3) 45 cu-ft
- Hopper Combination 4: Capacity 1) 175 cu-ft 2) 174 cu-ft

CHASSIS COMPATIBILITY

PRIMARY USAGE

- Pre-Plant (Spring)
- Post-Harvest (Fall)

METERING & APPLICATION RATES
- Dry (Granular) Fertilizer, Cover Crop, Granular Chemical
- Venturi distribution with 22" hydraulic fan
- Prescription Ready: Yes
- Section Control: 2-Sections (LH & RH) - Manual & Automatic Control
- Performance: Max Rate: 1,200 lbs @ 10 mph using the product density of 65 lbs / cu / ft
- Hydraulic (Variable Rate)
- Dual, independently driven bins 1 & 2 16" 304 stainless steel mesh chain conveyors (1 LH & 1 RH )
- MICRONUTRIENT METER: Drive: - Hydraulic (Variable Rate)
- MICRONUTRIENT METER: Roller Meter - 28-Groove Staggered Flute or 12-Groove Straight Flute
- Max / Min rates by roller type

HYDRAULICS
- Tandem hydraulic pumps coupled via PTO to Allison transmission.
- Suction lines lines from chassis reservoir.
- Suplementary cooling system inegrated with fan.
- PWM flow control on meters.
- Master hydraulic activation on cab console joystick.

AIR BOOM
- 72-foot spread width
- 304 stainless steel
- Hydraulic bi-fold booms (spring protected break-away tips)
- Hydraulic boom suspension with boom manual tip height adjustment
- Electro-hydraulic boom fold with independent LH / RH folding capability.
- All boom functions integrated into cab console joystick.

ELECTRONICS
- Raven RCM ready: harnessing, sensors and flow control pre-installed to work with Raven ECU in the Titan chassis
- Harness connections for chassis road lights
- External and internal hopper work lights
- Full integration into cab console switch gear and ISOBUS display.

OPTIONS
- Electric Tarp Kit: Includes installation and remote control
- Roller Meter System for Micro-Nutrient Compartment
Includes: meter hydraulic drive assembly, choice of 12 groove or 28 groove fluted rollers, flow control, bin level and meter speed sensors
- Boom Certification Kit
Includes: 35 collection pails and outlet bags, plus certification charts and instructions
NOTE: Certification ensures minimal outlet-to-outlet variation. This procedure should be performed after replacing any of the following components: (deflectors, main boom, boom tip, upper/lower funnels, air manifold or fan).
