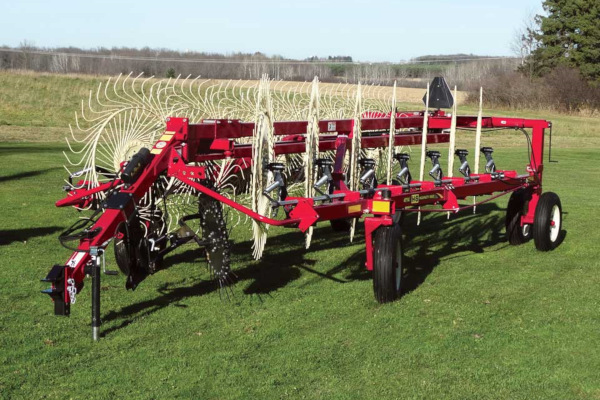

H&S 4116

• Raking wheels positioned ahead of the rake arms, main frame beams and transport wheels.
• Coupled with a high and wide end of frame there are no hang-up points or restrictions when raking the heaviest of hay crops. Windrow width adjustment is done with a hand crank.
• Rake opens and closes hydraulically, rake wheels are lowered and raised hydraulically, and the rake wheels float independently.
• The rake arms on the 14 and 16 wheel hi-capacity rakes feature 2 roller bearings on each end of the arm for long life, smooth operation and less wear than rakes with bushings.
• Hi-Capacity rakes fold up to 8′ 6″ or less with the touch of a lever for road transport or to go through gates.
• Limited oscillating offset tandem transport wheels assure a smooth, level ride, even over irrigation tracks. Standard on the 14 & 16 wheel models and optional on the 12 wheel model.
• An adjustment for the ground pressure on the rake wheels allows the operator to fine tune the 12, 14 and 16 wheel Hi-Capacity rakes to fit varying conditions.
• An adjustable brake band on top of the front spindle keeps the front gauge wheels from spinning in rough conditions.

OPTIONS

• 2 wheel center kicker assemblies.
• Rake wheel wind boards.
• Transport lighting.
• Safety chain.
• Limited oscillating offset tandem transport wheels for the 12 wheel model.
• Set of 15″ front gauge wheels for the 14 and 16 wheel models to help improve float over irrigation tracks.
• Wrap-around front rake beam with 15″ gauge wheels.
