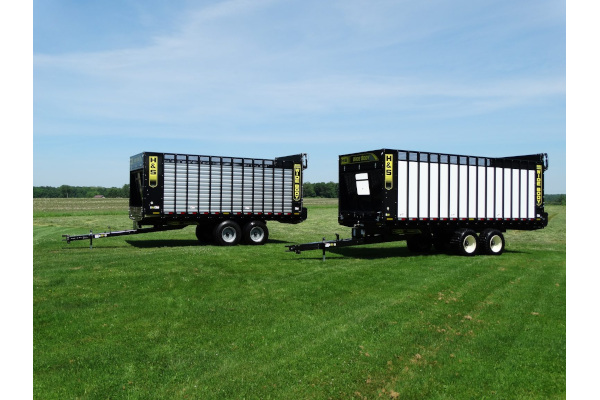

H&S WB8226-26'

8200 SERIES WIDE BODY FORAGE BOX FEATURES:

• Available in Truck, Chassis, or Running Gear Mount.
• 8′ inside width.
• Painted steel front panel & rear door.
• Aluminized Side Forage Boxes Models are available in 18′, 20′, and 22′ lengths.
• Fiberglass Reinforced Plywood Sided Forage Box Models (FRP) are available in 22′, 24′, 26′ & 30′ lengths.
• Mesh screen top sides.
• Bolted Front Flip Down Panel – (Electric Actuator Control is optional)
• Side stakes are 2½″ x 2½″ 10 gauge tubular steel with a 15½” spacing between them.
• The patented hydraulic center mount drive system provides smooth trouble-free operation.
• Spring-loaded tighteners on the main apron drive.
• Cross Z-iron is welded to the side channels in-line with the stakes for added strength.
• The poly floor features four formed steel channel supports that run lengthwise under the floor for added strength.
• 5″ Side Channels are welded to the stake pockets for added strength and are also used as a chain return slide.
• Choice of double barn doors with air closure, or a top hinged door with a hydraulic delay system.
• LED Highway Lighting
• An optional front-to-rear electric roll tarp is a nice feature to keep that valuable forage from blowing out during transport.
• An optional gravity unload grain hopper for grain is available for 8200 Series Forage Boxes with a top hinged door.
