Features

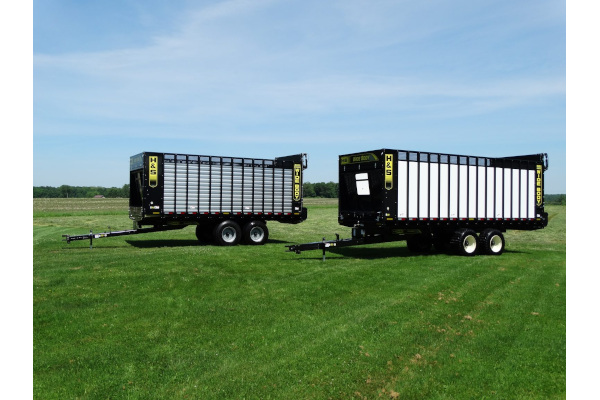

8200 SERIES WIDE BODY FORAGE BOX FEATURES:
- Available in Truck, Chassis, or Running Gear Mount.
- 8′ inside width.
- Painted steel front panel & rear door.
- Aluminized Side Forage Boxes Models are available in 18′, 20′, and 22′ lengths.
- Fiberglass Reinforced Plywood Sided Forage Box Models (FRP) are available in 22′, 24′, 26′ & 30′ lengths.
- Mesh screen top sides.
- Bolted Front Flip Down Panel – (Electric Actuator Control is optional)
- Side stakes are 2½″ x 2½″ 10 gauge tubular steel with a 15½” spacing between them.
- The patented hydraulic center mount drive system provides smooth trouble-free operation.
- Spring-loaded tighteners on the main apron drive.
- Cross Z-iron is welded to the side channels in-line with the stakes for added strength.
- The poly floor features four formed steel channel supports that run lengthwise under the floor for added strength.
- 5″ Side Channels are welded to the stake pockets for added strength and are also used as a chain return slide.
- Choice of double barn doors with air closure, or a top hinged door with a hydraulic delay system.
- LED Highway Lighting
- An optional front-to-rear electric roll tarp is a nice feature to keep that valuable forage from blowing out during transport.
- An optional gravity unload grain hopper for grain is available for 8200 Series Forage Boxes with a top hinged door.
Specs
WB8220A & WB8222 – 22′ | |
INSIDE WIDTH | 96″ |
INSIDE HEIGHT floor to top of side) |
86″ |
INSIDE LENGTH | 22′ |
OVERALL LENGTH | 22′ 9″ |
OVERALL WIDTH | 102″ |
STANDARD BOX OVERALL HEIGHT | 101″ |
STANDARD BOX CAPACITY STRUCK LEVEL | 1,244 CUBIC FT. |
WEIGHT – STANDARD BOX | 7,624# ALUMINUM/7,584# FRP |
BOX MATERIAL | ALUMINUM/FIBERGLASS REINFORCED PLYWOOD (FRP) |
MAIN APRON CHAIN | 667XH |
MAIN APRON DRIVE | HYDRAULIC DRIVE |
UNLOAD SPEED | UNLOAD TIME IS DEPENDENT ON TRACTOR R.P.M., HYDRAULIC PRESSURE AND G.P.M. |
REAR DOOR(S) W/AUTO LOCK/UNLOCK | TOP PIVOT DOOR W/DUAL CYLINDER HYDRAULIC GATE DELAY OR BARN DOORS W/AIR CLOSURE |
-
