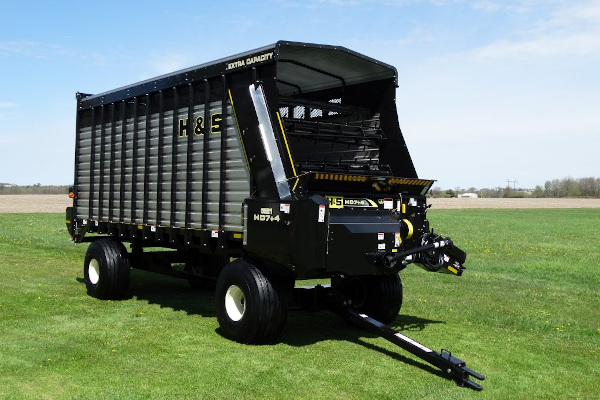

H&S 6219

Double tap to zoom

The 6200 Series Forage Boxes are front & rear unload only.
Available in either HD 7-4 (cross conveyor), or HD Twin Auger front unload systems w/hydraulic front unload drive as standard, and PTO drive front unload as optional.
2″ Apron Drive Shaft.
Faster unload time and the smoothest unloading system on the market.
New swept back unit design.
H&S uses three – 18″ 4 bar H.D. spiral type beaters – not augers. Aggressive in handling tough material, they are even feeding.
Beater shafts are 1¼″ & equipped with greaseable bearings and are mounted in the head, not auxiliary panels in the box.
Easy install 4th beater w/knock-out lugs.
A simple trouble-free variable speed drive lets you match just the right unload speed to the crop type, load condition and blower capacity.
A separate clutch allows you to start and clear the cross conveyor or augers before you start the beaters or main apron conveyors.
6200 Series Forage Box frames feature heavy 5″ channel cross members and 2.5″ x 2.5″ side stakes.
On the rear unload system, once the tailgate safety lock is released, the self-locking mechanism unlocks automatically while unloading and locks shut when the tailgate closes.
The Rear Unload Drive System features a quick change pin.
7+4 Models – Standard Spring Assist 24″ Cross Conveyor Extension has the ability to tip DOWNWARD 22 degrees.
Spring Loaded Tighteners on Beaters.
Remote grease zerks for the beater bearings.

6219 7-4 & TWIN AUGER
Inside Width	88.25″
Inside Height (floor to top of side)	86″
Inside Length	19′
Overall Width	112″
Overall Length	24′ 3″
Box Side Height	106″
Overall Height @ Top Door Pivot	122″
Cubic Ft. Cap. - No Roof/Struck	986.30 cu. ft.
Apron Chain	667X
Cross-Conveyor - HD 7-4	22″ WIDE - CA550 CHAIN WITH WELDED SLATS
Beaters	3 - 18″ - 4 BAR SPIRAL
Main Apron Speed	VARIABLE SPEED DRIVE — 12 UNLOAD SPEEDS
Front Drive System	BRONZE WORM GEAR BOX — #80 ROLLER CHAIN — 2″ MAIN APRON DRIVE SHAFT
Drive	HYDRAULIC DRIVE STANDARD/540 PTO OPTIONAL
Emergency Stop Clutch	STANDARD
Rear Unload Drive	HYDRAULIC
Rear Unload Speed	UNLOAD TIME IS DEPENDENT ON TRACTOR R.P.M., HYDRAULIC PRESSURE AND G.P.M.
Rear Endgate	AUTOMATIC LOCK AND UNLOCK
Rear Gate Delay	STANDARD
Roof	OPTIONAL

6200 SERIES 6219
