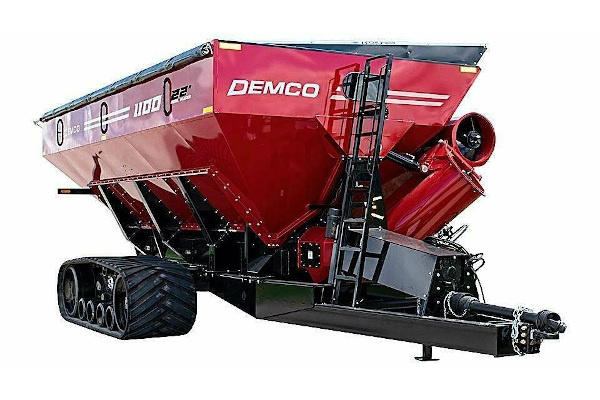

Demco 1100 Grain Cart

• 1 ¾ - 1000 RPM PTO
• Automatic reset “cut-out” clutch with overrunning clutch to protect auger driver and tractor PTO
• PTO driven drivetrain. Gearbox includes 2 output PTO shafts (1 for horizontal auger and 1 for vertical auger). NO PULLEYS OR BELTS!
• Adjustable austempered cast hitch, fits category 4 or 5 hammer strap tractor drawbar
• 22” diameter vertical auger with 3/8” flighting and Posi-Drive connection
• 20” horizontal drag auger
• UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
• Forward reach auger for optimum operator visibility
• Forward reach auger adjusts vertically from 11’8” to 15’7” to help prevent grain spilling
• Auger folds within the width of the box for compact transporting and storage
• Grain viewing windows
• 10,000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius
• Hand wheel operated clean-out door at bottom of auger for easy post season cleanout
• Reflective decals & LED light for high visibility
• Narrow transport width – 12’2”
• Low side cart height ONLY 11’ for better clearance
• Low center of gravity for sidehill stability
• 6 lever operated doors for trough cleanout
• Ergonomic pendant operates “1 touch” auger fold, adjustable spout, unload auger height adjust, and drag auger door
• Ergonomic pendant requires 1 remote outlet
• Roll tarp
• 5-point scale system (monitor not included)

• Camoplast Trailed Track System - Reduces ground pressure by 30-80% versus tires, reduces the number of contact points, increases mobility and field access especially in softer footing conditions, and maximizes the performance potential of the large capacity carts.

NOTE: Demco grain carts are not to be towed down the road loaded

OPTIONS

Electric roll tarp
Auto gate shutoff for drag auger doors (requires the wireless scale monitor)

Bushel capacity measured with #2 corn at 15% moisture content (56 lb. test weight)
